Hi,It is Rita.We are a leading manufacturer of automobile and motorcycle hydraulic brake hose and fittings in China.
Technical standard: SAE J1401, DOT
Company standard: ISO 9001; TS 16949
Function in : automobile, motorcycle , scooter, trailer, truck ect.
Our main products are :
1>Brake hose: It is made according to SAEJ1401 USA standards.
Spec.: 3.2mm X 10.5mm, 1/8
2>Hose crimping machine and mould and Stainless steel braided brake hose and Fuel hose, air conditioning hose...
3>Fittings & brake pipe & bundy tube ?copper plated, zinc plated and PVF plated)
1. Single wall;2. Double wall and banjo bolt & nuts.
we will happy to give our good price and we also can send you sample for our long-term business relation.
Looking forward to your earliest reply so that we can develop successful business partnership with you!
SAE J1401 brake hose assembly
We are a leading manufacturer of automobile and motorcycle hydraulic brake hose and fittings.
Our business range include below:
|
Product name
|
Brake hose assembly
|
|
Specifications
|
3.2MMX 10.5MM 1/8’
4.8MMX 12.5MM 3/16’
|
|
Construction
|
EPDM+2PLY RAYON+EPDM+ two end fittings(all kind of fittings you can choose from our website or catalogues)
|
|
Certificates
|
TS16949,ISO9001,GB…DOT SAE J1401
|
|
Function or used on
|
Motorcycle and car brake system
|
1>Brake hose: It made according to SAEJ1401 standards.
+Motorcycle brake hose: GSG001(3.2mm X 10.5mm) 1/8HL SAEJ1401 Standards.
+Automobile brake hose: GSG003A(3.2mm X 10.5mm) 1/8HL SAEJ1401 Standards.
+Automobile brake hose: GSG003B(3.2mm X 10.5mm) 1/8HL SAEJ1401 Standards.
+Automobile brake hose: GSG004(3.2mm X 12.5mm) SAEJ1401 Standards.
+Automobile brake hose: GSG005(4.8mm X 12.5mm) SAEJ1401 Standards.
Qingdao Guosong Machinery Parts Co.,LTD. founded at 1996, the Co. has been expanded to the leading brake hose manufacturer in China now. It has more than 300 staff, buildings occupying area about 6,000 square meters . The sections include Marketing Department, Hose Factory and Fitting Factory .
Our main product is QDGY brand rubber brake hose produced according to American standards SAEJ1401 and also passed the quality test of China National Auto Testing Center. Now our brake hose is on the way of QS9000 and DOT. Our Co, has passed qualification of ISO9001-2000,quality Management system and is running under the standard.
To provide our customers with the best products at the most reasonable price, we are steady to do innovation, professional and characteristic design to our products. We imported modernized production lines from Japan and adopted American and Italian technics and skills, our senior scientific and technological experts, advanced R&D Lab and testing equipments make our products almost in perfect.
We have established close business relationship with more than fifty countries by the excellent quality and the competitive price ,and have won many big wholesale company in worldwide range. Sincerely hope to have opportunity to work together with you!!!
Pls contact Rita for more details with thanks in advance.
dot approved brake assembly 1/8 size
Hose Discription
Rubber Brake Hose Specifications:
| Inner Diameter |
Outer Diameter |
Outer layer |
Double braid |
Inner layer |
| 1/8" (3.2mm) |
0.413" (10.5mm) |
EPDM |
PVA |
EPDM |
| 3/16" (4.8mm) |
0.492" (12.5mm)
|
Rubb Brake Hose Features:
- Two braid PVA reinforced hose
- Meets FMVSS-106 and SAE J1401 specifications
- Every brake hose pressure tested to 3500 psi( 240 bar or 24Mpa )
- Burst pressure:minimum 7250 psi ( 500 bar or 50Mpa )
- Temperature range -50°C to 121 °C
- Compatible with DOT3,DOT4 and DOT4+ brake fluides
Application:
For use in braking system of the vehicle.
Technical Specification:
|
Test Items
|
Test Condition
|
Standard
|
Test Results
|
|
ID
|
Normal
|
3.2mm
|
3.15~3.45mm
|
|
OD
|
Normal
|
10.5mm
|
10.30~10.70mm
|
|
Expansion
|
1000psi
|
0.33cc/ft max.
|
0.14~0.16cc/ft
|
|
1500psi
|
0.42cc/ft max.
|
0.20~0.22cc/ft
|
|
2900psi
|
0.61cc/ft max.
|
0.41~0.43cc/ft
|
|
Burst
|
4000psi×2min;pressure rated 25,000±10,000psi/min
|
>7000psi No seepage
|
>10,500psi
|
|
Whip
|
235~250psi
|
>35h
|
>70h
|
|
Tensile
|
tensile speed:218±3mm/min
|
>1446N
|
2400N
|
|
Cold Bend
|
-45°C ~-48°C× 72h, 3-5s,bending180°
|
No cracking
|
No cracking
|
|
Ozone
|
100pphm×70h×40°C, 7X
|
No cracking
|
No cracking
|
|
Impulse
|
146°C 1±0.1min at 1600psi+70
|
>7000psi No crack
|
>7500psi
|
|
Compatibility
|
120°C × 70h
|
>7000psi No seepage
|
>8800psi
|
|
Salt Spray
|
5%NaCl, 24h,water cleanout in 35°C
|
No red rust
|
No red rust
|
|
Water Aging
|
Water in 85±2°C,after 70h~72h 4000psi × 2min;pressure rated 25,000±10,000psi/min
|
>7000psi; >35h; >1446N
|
>10250psi;>60h; >2200N
|

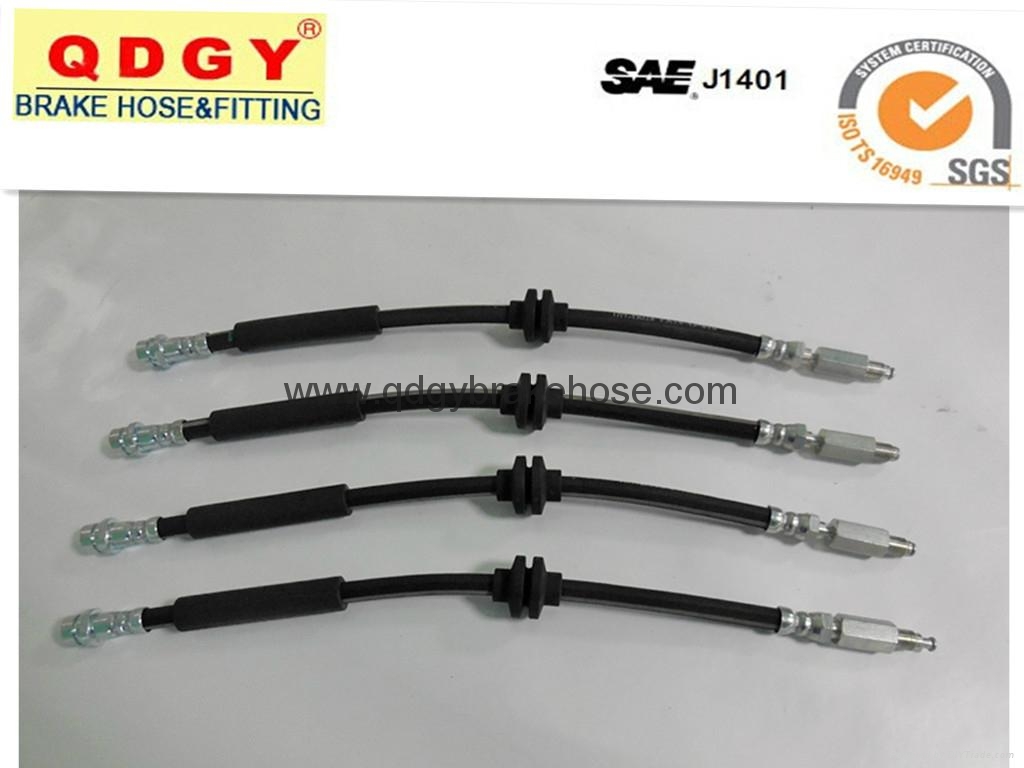

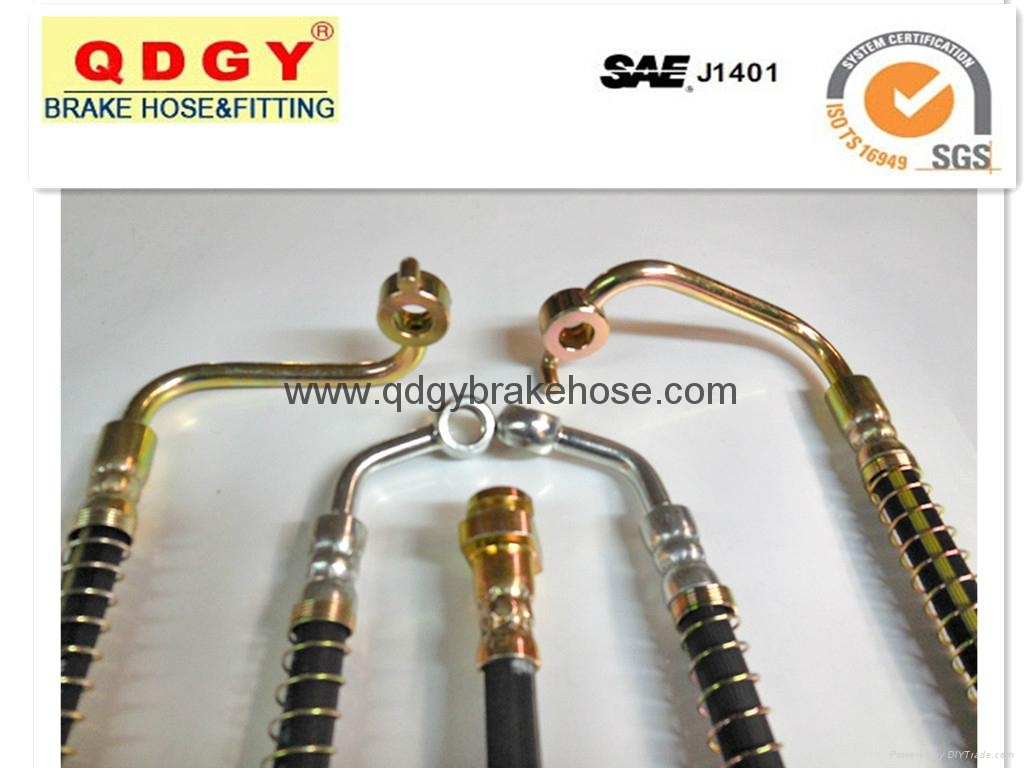

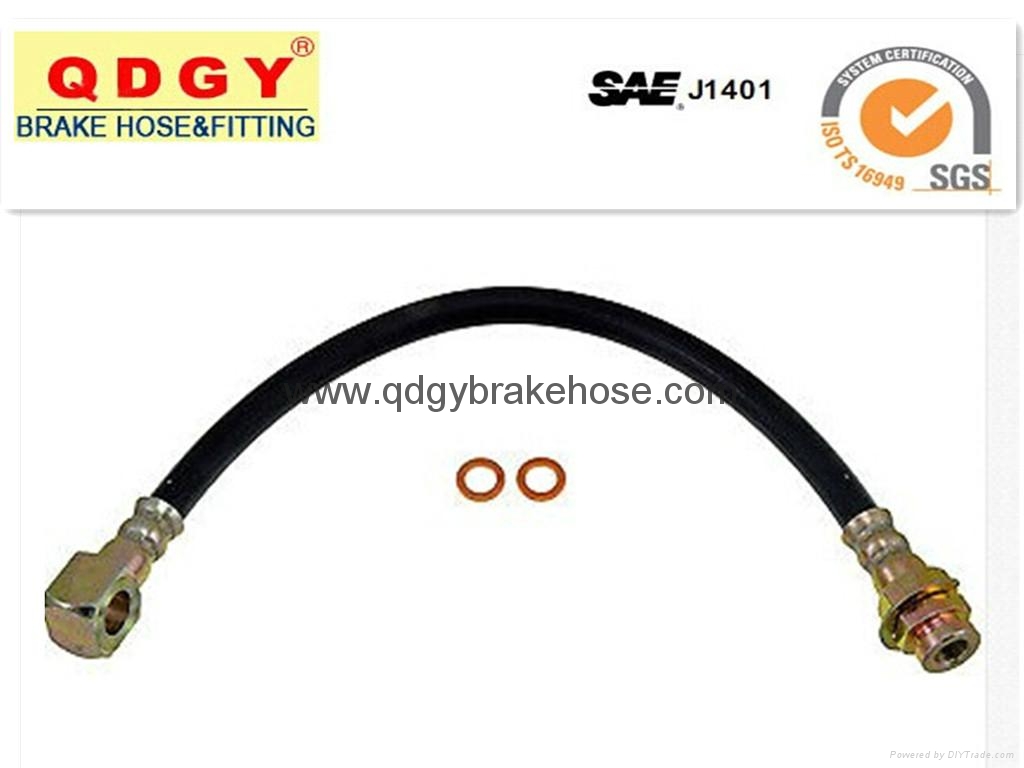

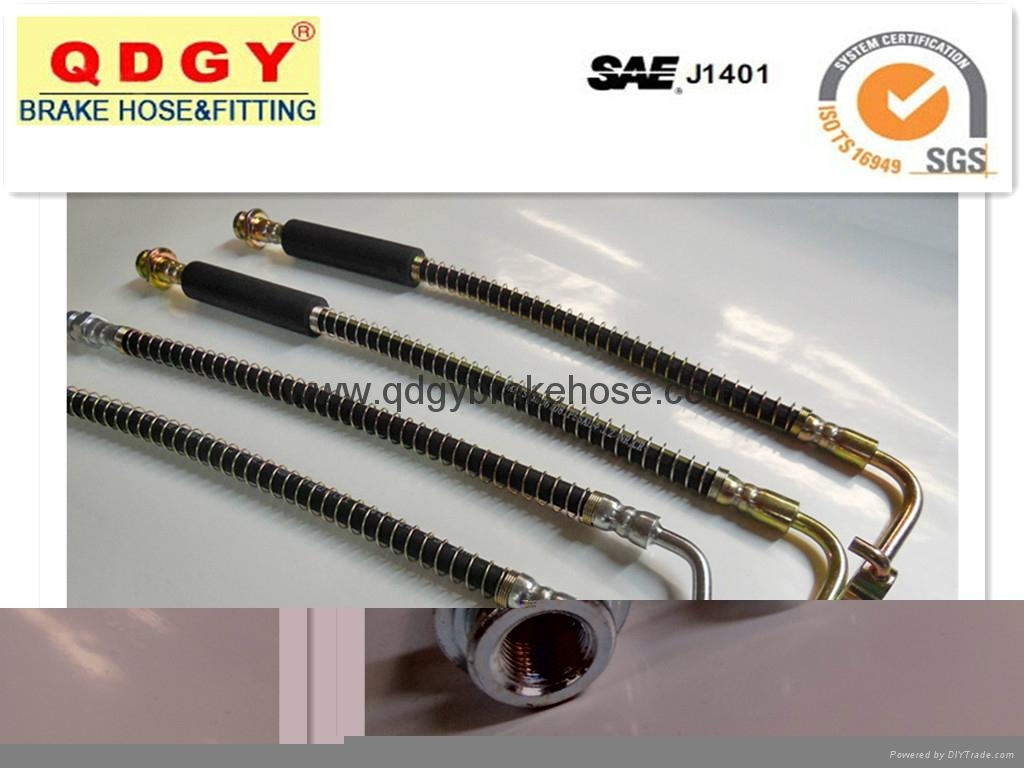

Rubber brake hose some pictures:
Related Products
Packaging & Shipping
Packaging:
QDGY common package: PVC bag in carton box with QDGY logo
Welcomed special package request,single packing,tasteful degined package are ok.Only little cost of special package.
Lead time:
For fitting: common fitting within 30 days;special fitting within 40 days.
For brake hose: wihithin 20 days.
For brake hose assembly: within 40 days.
Please noted: Exact lead time is based on details order ,please contact with us for the details information.
Shipping:
Qingdao port(Chingtao port) is only about 30 minitues from our factory.
Qingdao airport is only about 40 minitues .
Conveniently by air or by ocean with cheaper freight fee.
FAQ
Q1: Waht kinds of main rubber hose can product?
A: Rubber brake hose,EPDM brake hose,Hydraulic brake hose,Hydraulic hose,water hose,fuel& oil hose,Brake hose,Stem hose,SAE J1401 brake hose,DOT 1/8" brake hose,stainless steel braided brake hose,teflon brake hose,teflon s.s braided brake hose,OE No. brake hose,Flexible brake hose,Performance competition brake hose...
Q2: What size of brake hose can you supply?
A: common size: 3.2x10.5mm(1/8");4.8x12.5mm(3/16")
Special size: 3.2x11mm...or your request size
Q3: Can you print the words(line) as our requirement?
A: Yes,we do provide embossed and printing marking with different color ,as your requirement.
Q4: What kinds of fitting can product?
A: All kinds.Female fitting,male fitting,banjo fitting,adepter brake hose fitting,bolts and nuts,steel with zinc ,chrome,nickle...stainless steel,brass...
Q5: How many types of brake hose do you product?
A: Brake hose,Teflon braided brake hose,PTFE stainless steel braided brake line,Steel tube,Bundy tube,Steel tube assembly,Brake hose assembly...
Q6: What is my order's delivery date?
A: It usually takes 5-40 days,which generally depends on your order quantity and our storage.Details information ,kindly please feel free to contact with us,or visit our website www.qdgybrakehose.com,we will reply you within 24 hours.
